SCMR30A

SCMR30A

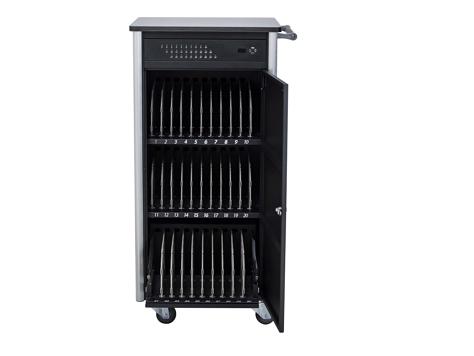

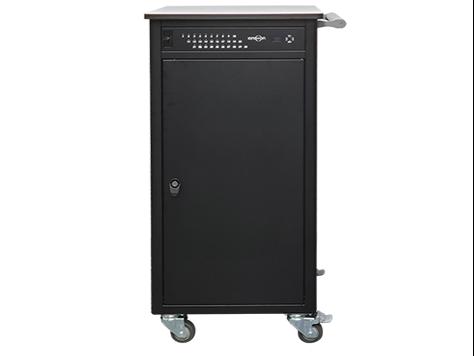

The 30-Port Smart USB Type-C Multi-Charging Trolley(SCMR30A) provides power supply and manage battery of USB Type-C smart devices (i.e. smart phone, tablet, Chromebook, wearable device...and etc.).

SCMR30A uses a sturdy cold-rolled steel plate and flexible swivel wheels, allowing easier mobility, hence making it the perfect solution for school authorities to safe keep smart devices. Individual USB Type-C cable trays and friendly cable layout make cable and equipment storage more convenient and easier to use.

It is also possible to monitor and manage the charging status of multiple smart devices from the public network of a large organization such as a company or school. Before this system was available, these smart devices had to be individually connected to power sockets, which was space-taking and inconvenient to manage. Now, with SCMR30A, you can easily charge batteries of these devices, saving costs of labor significantly.

Inquiry ▶
Description

Model No.

SCMR30A

Features

Provides the storage space and the charging requirement with the 30-port Type-C sockets, up to 15.6-inch device

Display

LED Status Indicators:

1.       Blue light flashes slowly：indicator the USB Type-C Port Slow charging

2.       Blue light flashes quickly：indicator the USB Type-C Port Quick charging

3.       Blue light off or steady on: indicator the Port has been charged

    (Depending on the charging status of the device)

4.       Red light steady on: indicator single Port abnormal and cannot be charged

Power Supply

Input Outlet: AC 100V~240V, 50/60Hz, 5A (x3)

Output

USB Type-C PD3.0 PPS output x 30 Ports; each layer is 10 Ports, there are three layer in total and the voltage not over 720W

Each port spec as below：

1. DC- 5V，max output current 3A，max power 15W

2. DC- 9V，max output current 3A，max power 27W

3. DC-12V， max output current 3A，max power 36W

4. DC-15V， max output current 3A，max power 45W

5. DC-20V， max output current 3.25A，max power 65W

(Will reach max output current 5A，max power 100W in upcoming version)

6. PPS mode







Over-charging Protection

1.USB Type C, Over Current Protection (OCP)

2.USB Type C, Short-circuit Protection (SCP)

3.USB Type-C, Total DC Power Protection (TCP)

4. When the total power consumption exceeds the limit while using both the external outlet and the charging device simultaneously, the protection switch will be activated. At this time, all devices will enter a power-off protection mode. Please adjust the power usage mode to reduce the total power consumption, then reset the protection switch and power on again

5.When the malfunctions, the total output power will be temporarily reduced depending on the load condition.

Device Bay Capacity

Height-adjustable shelves for flexible device accommodation, supporting devices with case and cable up to 15.6″ × 11″

Temperature Range

0 ~ 40°C (operating)

Temperature Range

-5 ~ 50°C (non-operating)

USB Type-C cable management

Independent Dividers and Cable management with nuts

Built material

Steel with Powder-Coated Finish

Security

 Front and side doors are equipped with physical lock and master key for all doors, also come with Smart electronic lock (Access Card RFID Type)

Castors

4” swivel castors x4 (2 of castors are lockable)

Slot size

30 x 330 x 245 mm (WxDxH) Adjustable

Dimension

530 x 500 x 1110 mm (WxDxH) (Castors included, handle is hidden)

Net Weight

54Kg

Gross Weight

59Kg

Certification

FCC/CE/CB/SIRIM
